- Place of Origin: china
- Brand Name: guoqiang
- Model Number: GQ-200

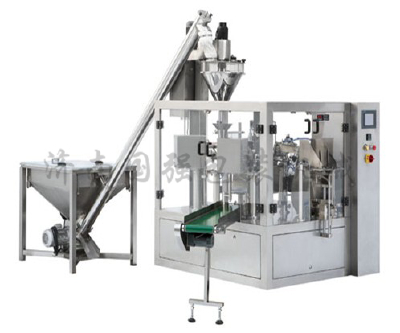

1. The units:*GQ-8-200F main machine
*Screw filling metering machine
*The spiral feeding machine
2. Main structure and characteristics:
a. Intelligence can be detect whether open the bag and bag opening is complete, refuse feeding or
heat sealing when not suitable, To avoid the waste of the bag, can save considerable cost of materials for the user;
b. The machine speed can be within the specified limits by frequency control device to realize the stepless adjustment;
c. Using PLC control, touch screen man-machine interface, operation more convenient;
d. the equipment has fault warning and protection function, when the working pressure is
abnormal or other accidents happen, there is an automatic alarm and shutdown function,
to realize safety protection.
e. Each machine clamping width can be adjusted freely in a certain range, to match the different
width of the bag
f. Components with high precision plastic bearing, don't need to refuel, reduce the pollution to
food
g. And the packaging bag or material contact parts are made of stainless steel, meet the health standards of food processing industry, safe and reliable
h. The use of prefabricated product packaging bag, pattern perfect, good sealing effect, high grade products.
3. Technical parameter
Model | GQ-8-200F |
Bag type | Self-supporting bag (with zipper and without zip), flat bag (three sides sealing, four sides sealing, hand bags, zipper bags, paper bags etc.) composite bag. |
Bag size | Width:100-200mm Length:100-300mm |
Filling range | 5-1500g |
Packaging accuracy | ≤±1 |
Pack speed | ≤45bags/min (Its speed decide by the material itself and the filling weight ) |
Voltage | Three phase 380V 50HZ/60HZ |
Power | 5KW |
Air consumption | 0.6m3/min(according to the buyer) |
Remarks | 1. According to customer requirements, provide special design。 |
4. Application:
Suitable for packing powdery material, such as spices, monosodium glutamate, glucose, refined sugar, flavor powder, talcum powder, additives, pesticide and veterinary drug packaging materials.
- Place of Origin: china
- Brand Name: guoqiang
- Model Number: GQ-200
